Graphene floor heating is a sophisticated radiant heating system that uses graphene-based materials in its main heating parts to evenly and efficiently warm up the floor. It is a type of electric underfloor heating technology that is a big step forward over older systems.

Material Properties of Graphene Driving Performance

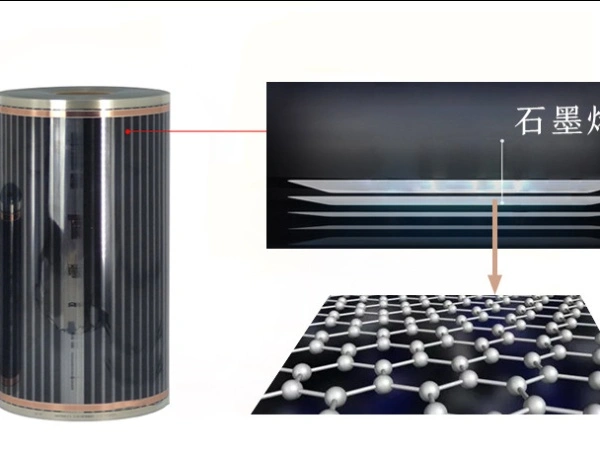

The superior performance of graphene floor heating stems from graphene's intrinsic material characteristics. Structurally, graphene consists of a single layer of carbon atoms arranged in a hexagonal lattice, creating a two-dimensional structure with extraordinary thermal conductivity exceeding 5000 W/m·K, far surpassing traditional conductive materials like copper or aluminum. This excellent thermal conductivity makes sure that heat moves quickly and evenly throughout the heating surface. Graphene also has great electrical conductivity and very little resistance, which makes it easy to turn electrical energy into heat energy with very little energy loss. Its mechanical flexibility makes it possible to include it in thin, flexible films or mats. Its chemical stability and resistance to corrosion let it last a long time, so it will keep working well for decades.

Core Components of Graphene Floor Heating Systems

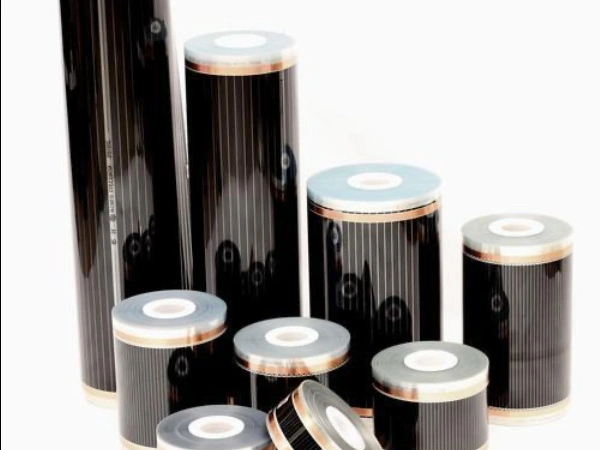

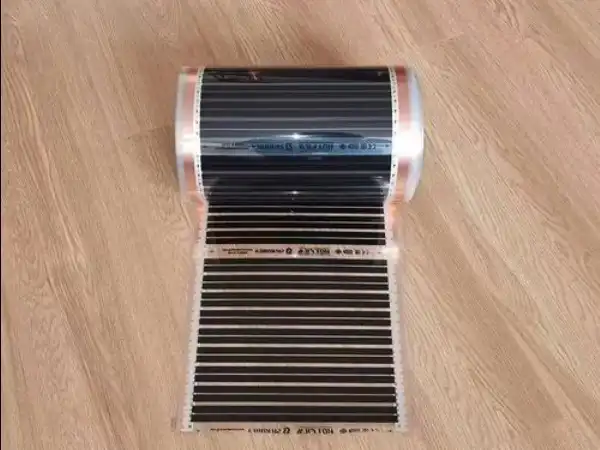

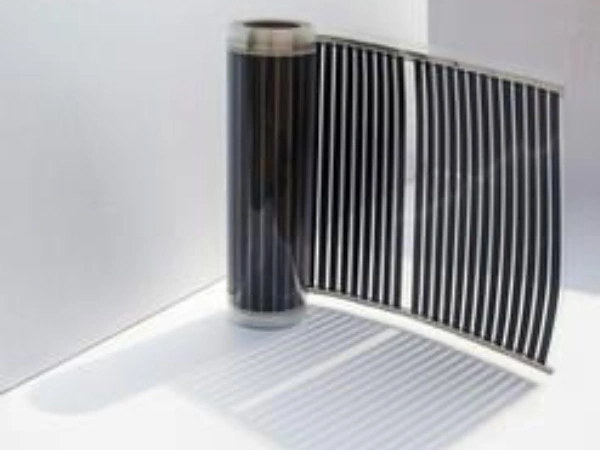

A complete graphene floor heating system comprises several key components working in synergy. The primary element is the graphene heating layer, typically constructed as a thin, flexible film or mat embedded with graphene-based conductive materials. This layer contains printed or integrated conductive pathways that generate heat when energized. Beneath the heating layer, an insulation layer, often made of extruded polystyrene (XPS) or expanded polystyrene (EPS), prevents downward heat loss, directing warmth upward into the occupied space. A reflective aluminum foil layer may be added between the insulation and heating elements to enhance radiant heat distribution. Temperature regulation is managed through a smart thermostat with sensors that monitor room temperature and adjust heating output. Protective layers, such as wear-resistant films or coatings, shield the heating elements from physical damage during installation and use.

Understanding the foundational definition and material science behind graphene floor heating provides essential context for exploring how these systems function in practice. The following section delves into the operational mechanisms that convert electrical energy into usable heat and the technical advantages that distinguish this technology from traditional heating solutions.

Operational Principles and Technical Advantages

①Fundamental Working Mechanism

Graphene floor heating operates on the principle of electric radiant heating, utilizing graphene's conductive properties to generate and distribute heat efficiently. When connected to a power source, an electrical current flows through the graphene-based conductive pathways within the heating film or mat. Due to graphene's low electrical resistance, the current induces rapid thermal excitation of the material's atoms, converting electrical energy directly into infrared radiant heat. This heat radiates upward from the floor surface, warming objects, surfaces, and occupants directly through infrared radiation, similar to the way sunlight heats objects. This radiant heating method differs from convection-based systems that heat air first, resulting in more consistent temperature distribution with minimal stratification between floor and ceiling levels.

②Efficiency and Heat Distribution Characteristics

One of the most notable advantages of graphene floor heating is its high energy efficiency, with electro-thermal conversion rates typically exceeding 95%. This efficiency stems from graphene's ability to convert nearly all electrical input into usable heat, minimizing energy waste compared to traditional systems with conversion rates ranging from 60% to 85%. The material's high thermal conductivity ensures uniform heat distribution across the entire floor surface, with temperature variations often limited to ±2°C, eliminating cold spots common in resistance wire systems. Rapid heat response is another key feature; graphene heating elements reach operational temperature within 10–30 minutes, significantly faster than water-based systems that may require 1–3 hours to heat up. This quick response allows for precise temperature control and energy savings by enabling heating on demand rather than continuous operation.

③Safety and Durability Features

Graphene floor heating systems incorporate multiple safety features that enhance reliability and user confidence. Most systems operate at low voltages (24–36V) or include current-limiting designs to reduce electrical hazards. Waterproofing is a standard feature, with many heating films achieving an IP67 rating, making them resistant to moisture and suitable for installation in bathrooms or kitchens. Overheat protection mechanisms, often integrated into smart thermostats, prevent excessive temperature buildup by shutting down the system if predefined thresholds are exceeded. The durability of graphene contributes to a long operational lifespan of 30 years or more, with minimal performance degradation over time. Unlike water-based systems prone to pipe leakage or boiler failures, graphene systems have no moving parts, reducing maintenance needs and failure risks.

Practical Applications and Comparative Analysis

①Suitable Installation Scenarios

Graphene floor heating excels in diverse installation environments due to its adaptability and efficiency. In residential settings, it is ideal for apartments, houses, and condominiums, particularly in retrofit projects where a minimal floor height increase (3–5cm) is critical. Its thin profile and flexible design accommodate irregular room shapes and avoid the structural modifications required for water-based systems.  Regions with cold climates or unstable gas supplies benefit significantly from its all-electric operation, reducing reliance on fossil fuels.

②Comparison with Traditional Underfloor Heating Systems

When compared to traditional underfloor heating, graphene systems offer distinct advantages in several key areas. Water-based hydronic systems, while widely used, require boilers, pumps, and extensive piping networks, resulting in higher installation complexity and costs. They suffer from slower heat response and higher energy loss due to heat transfer through water. Traditional electric systems using resistance wires or carbon films have lower thermal conductivity than graphene, leading to uneven heating and higher energy consumption. Graphene systems outperform both in installation speed, often completed in a fraction of the time required for water-based systems, and in long-term operational costs due to higher efficiency. They also eliminate the risk of pipe leakage and boiler maintenance, reducing lifecycle expenses. However, initial material costs for graphene systems may be higher than basic electric systems, though this is offset by energy savings over time.

Graphene Floor Heating Supplier: Shengxihong Science and Technology

For those interested in exploring the benefits of graphene floor heating technology, Shaanxi Shengxihong Science and Technology Co., Ltd. stands at the forefront of innovation in this field. As a leading supplier of graphene heating solutions, Shengxihong offers a comprehensive range of products, including graphene sauna rooms, cold-resistant air-conditioners, electric heating films, and more.

You can contact Shengxihong directly at 1315363763@qq.com for personalized assistance and information.
