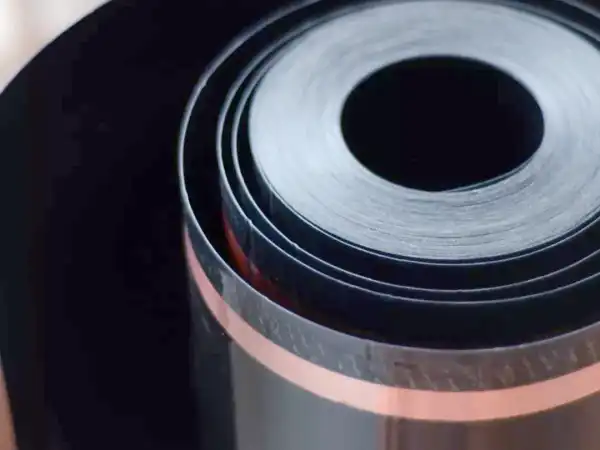

Graphene heating film has emerged as a revolutionary technology in the field of thermal management, finding applications in smart homes, medical devices, industrial heating systems, and portable electronics. Unlike traditional heating materials such as nickel-chromium alloys or carbon fibers, which often suffer from low energy efficiency, uneven heating, and short lifespans, graphene film leverages the unique physical properties of graphene to deliver superior performance.

Structural and Electrical Properties of Graphene: The Foundation of Heating Performance

The heating capability of graphene heating film originates from graphene's distinctive atomic structure and exceptional electrical properties. First isolated in 2004 by Andre Geim and Konstantin Novoselov (who later won the Nobel Prize in Physics for this work), graphene is a two-dimensional (2D) material composed of a single layer of carbon atoms arranged in a hexagonal lattice. Each carbon atom in this lattice forms three strong covalent bonds with adjacent carbon atoms through sp² hybridization, leaving one unbonded p-orbital electron free to move across the material's plane. This structural feature is the key to graphene's electrical conductivity, which is far superior to that of conventional conductors.

At room temperature, graphene exhibits an electron mobility of approximately 200,000 cm²/(V·s), more than 100 times higher than that of copper, a commonly used conductive material. This high electron mobility means that electrons can flow through graphene with minimal scattering, reducing energy loss and ensuring efficient current distribution. Unlike bulk carbon materials or carbon nanotubes, graphene's 2D structure eliminates electron scattering caused by grain boundaries or bulk defects (when synthesized with high purity), allowing electrons to move uniformly across the film's surface. This uniformity is critical for heating applications, as it prevents localized resistance spikes that would otherwise lead to overheating or "hotspots."

Additionally, graphene's electrical resistance is inherently low. For a high-purity single-layer graphene sheet, the sheet resistance (a measure of resistance per unit area) can be as low as 31 Ω/sq. This low resistance ensures that when an electric current is applied to the graphene heating film, the material does not dissipate excessive energy as wasted heat due to high resistance. Instead, it converts electrical energy into usable thermal energy in a controlled manner. In practical applications, graphene heating films are often composed of multiple layers of graphene (typically 5–10 layers) to balance conductivity, mechanical strength, and cost, though the core electrical properties derived from the single-layer structure remain intact. Together, these structural and electrical characteristics form the foundation for graphene's ability to generate heat efficiently and uniformly.

Having established the structural and electrical foundations that enable graphene heating films to function, it is essential to delve into the specific physical mechanisms that convert electrical energy into usable heat—a process that distinguishes graphene from traditional heating materials. Unlike nickel-chromium alloys, which rely solely on Joule heating with high resistance and uneven heat distribution, graphene's unique properties enable a more sophisticated and efficient energy conversion process, combining Joule heating with optimized thermal radiation and conduction. This multifaceted mechanism is explored in the following section.

Core Heating Mechanisms of Graphene Heating Films: From Electrical Energy to Thermal Energy Conversion

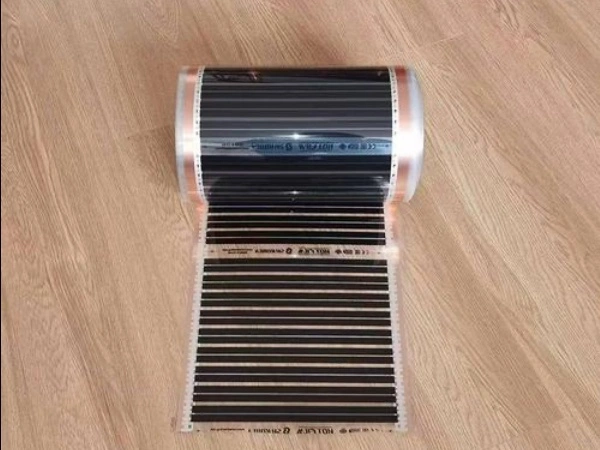

The primary mechanism by which graphene heating films generate heat is the Joule Heating Effect (also known as resistive heating), a fundamental physical phenomenon where electrical energy is converted into thermal energy when an electric current passes through a conductive material with resistance. For graphene heating films, this process occurs in three key steps: current injection, electron-lattice interactions, and thermal energy release.

First, when an external voltage is applied to the electrodes of the graphene heating film, an electric current flows through the graphene layer. Due to graphene's high electron mobility, electrons move rapidly across the film's plane. As these electrons travel, they collide with the graphene lattice's carbon atoms and any minor defects (e.g., atomic vacancies or impurity atoms) present in the material. These collisions transfer the electrons' kinetic energy to the lattice, causing the carbon atoms to vibrate more vigorously. In thermodynamics, this increased atomic vibration corresponds to an increase in temperature, effectively converting electrical energy into thermal energy. Mathematically, the amount of thermal energy (Q) generated is described by Joule's Law: Q = I²Rt, where I is the current, R is the resistance of the graphene film, and t is the time the current is applied. Graphene's low resistance ensures that for a given current, the heat generated is stable and efficient, avoiding the excessive energy waste seen in high-resistance materials.

Beyond Joule heating, graphene heating films also exhibit superior thermal radiation properties, which enhance their heating efficiency. When heated, graphene emits far-infrared (FIR) radiation with a wavelength range of 8–14 μm, a spectrum often referred to as the "biological window" because it is easily absorbed by human bodies, fabrics, and most solid materials. Unlike traditional heating elements that primarily rely on convection (heating air) or conduction (direct contact), FIR radiation transfers heat directly to the target object without heating the surrounding air, reducing energy loss. Studies have shown that graphene heating films convert 60–80% of electrical energy into FIR radiation, significantly higher than the 30–50% efficiency of conventional heating films. This makes graphene heating films ideal for applications such as underfloor heating, where direct heat transfer to the floor (and subsequently to the room) is preferred over heating air.

Finally, graphene's exceptional thermal conductivity ensures that the generated heat is distributed uniformly across the film. With a thermal conductivity of approximately 5000 W/(m·K)—more than 10 times that of copper, graphene rapidly spreads heat from areas of higher temperature to areas of lower temperature, eliminating hotspots. This uniformity not only improves user comfort (e.g., no cold spots in a heated floor) but also extends the film's lifespan by preventing localized overheating, which can degrade the material over time. Together, Joule heating, FIR radiation, and high thermal conductivity form a synergistic heating mechanism that defines the superior performance of graphene heating films.

While the structural basis and core heating mechanisms define how graphene heating films work in theory, their real-world performance is heavily influenced by practical design and manufacturing factors. Even with ideal graphene properties, inconsistencies in production or improper material selection can compromise heating efficiency, uniformity, and safety. For example, a graphene film with high impurity content may exhibit uneven resistance, leading to hotspots, while a poorly chosen substrate could hinder heat transfer.

Key Factors Influencing the Heating Performance of Graphene Heating Films

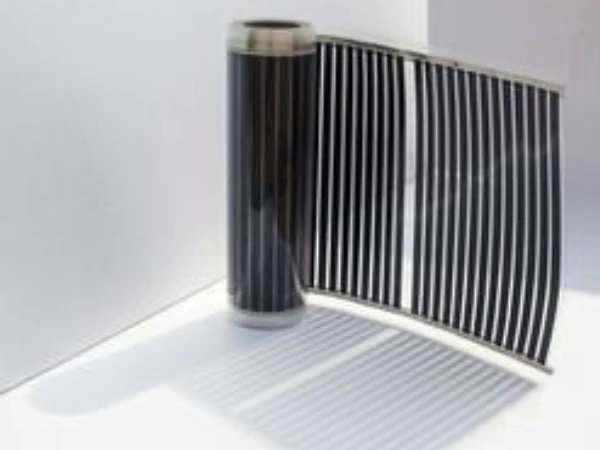

The heating performance of graphene heating films, including efficiency, uniformity, and stability, is not solely determined by graphene's intrinsic properties; it also depends on a range of external factors related to material synthesis, film fabrication, and component selection. These factors must be carefully controlled to ensure the film operates as intended, and they vary based on the target application (e.g., high-temperature industrial heating vs. low-temperature consumer electronics).

Graphene Purity and Defect Density are among the most critical factors. Impurities such as residual metals (from synthesis processes like chemical vapor deposition, or CVD) or carbonaceous byproducts increase the film's resistance by scattering electrons. For instance, a graphene film with 5% metal impurity content can see its electron mobility decrease by 30%, leading to higher energy loss and uneven heating. Similarly, structural defects, such as atomic vacancies, edge defects, or lattice distortions, act as electron scattering centers, reducing conductivity and creating localized resistance spikes. To mitigate this, industrial manufacturers typically use high-purity graphene (≥95% carbon content) synthesized via CVD, which produces large-area, low-defect films. Post-synthesis treatments, such as annealing, can further reduce defects by repairing lattice distortions, improving electrical and thermal performance.

Film Thickness and Uniformity also play a vital role. While single-layer graphene has the highest electron mobility, it is too thin to withstand high currents (risking electrical breakdown) and is mechanically fragile. Practical graphene heating films use multi-layer graphene (5–10 layers), where thickness is balanced to ensure both conductivity and durability. However, variations in thickness (e.g., a 10% deviation across the film) can lead to uneven resistance, as thicker regions have lower resistance and generate less heat, while thinner regions have higher resistance and generate more heat. To achieve uniformity, manufacturers use precision CVD systems with controlled gas flow and temperature, ensuring consistent layer deposition. Post-fabrication quality control, such as atomic force microscopy (AFM) or optical spectroscopy, is used to verify thickness uniformity.

Substrate Material Selection balances insulation, thermal conduction, and mechanical stability. The substrate (which supports the graphene film) must be electrically insulating to prevent electrical leakage and thermally conductive to transfer heat from the graphene to the target. Common substrates include polyimide (PI), polyethylene terephthalate (PET), and glass. PI substrates are ideal for high-temperature applications (e.g., industrial heating) due to their high thermal resistance (long-term use temperature ≤200°C) and mechanical strength. PET substrates, by contrast, are cheaper and more flexible but have a lower maximum temperature (≤120°C), making them suitable for consumer electronics like heated blankets. A substrate with low thermal conductivity (e.g., some plastics) will trap heat in the graphene film, increasing the risk of overheating, while a substrate with high thermal conductivity (e.g., glass) may dissipate heat too quickly, reducing heating efficiency. Thus, substrate selection must align with the application's temperature and heat transfer requirements.

For those interested in exploring the potential of graphene heating film for their specific applications or industries, Shaanxi Shengxihong Science and Technology Co., Ltd. stands at the forefront of this technology. With a comprehensive range of graphene-based heating solutions and a commitment to innovation.

To learn more about how graphene heating film can benefit your projects or to discuss custom solutions, we encourage you to reach out to the experts at Shengxihong. Contact them at 1315363763@qq.com for more information on their products and services.

References

• Geim, A. K., & Novoselov, K. S. (2007). The rise of graphene. Nature Materials, 6(3), 183–191.
• Balandin, A. A., Ghosh, S., Bao, W., Calizo, I., Teweldebrhan, D., Miao, F., & Lau, C. N. (2008). Superior thermal conductivity of single-layer graphene. Nano Letters, 8(3), 902–907.
• Wang, X., Li, J., Zhang, Y., & Liu, Z. (2019). Graphene-based heating films: Preparation, properties, and applications. Carbon, 151, 683–705.
• Zhang, H., Chen, G., & Wang, C. (2021). Joule heating effect in graphene: A review. Journal of Physics D: Applied Physics, 54(24), 243001.
• International Energy Agency (IEA). (2022). Advanced Materials for Energy Efficiency: Graphene Heating Technologies. IEA Technology Report, 2022–05.
